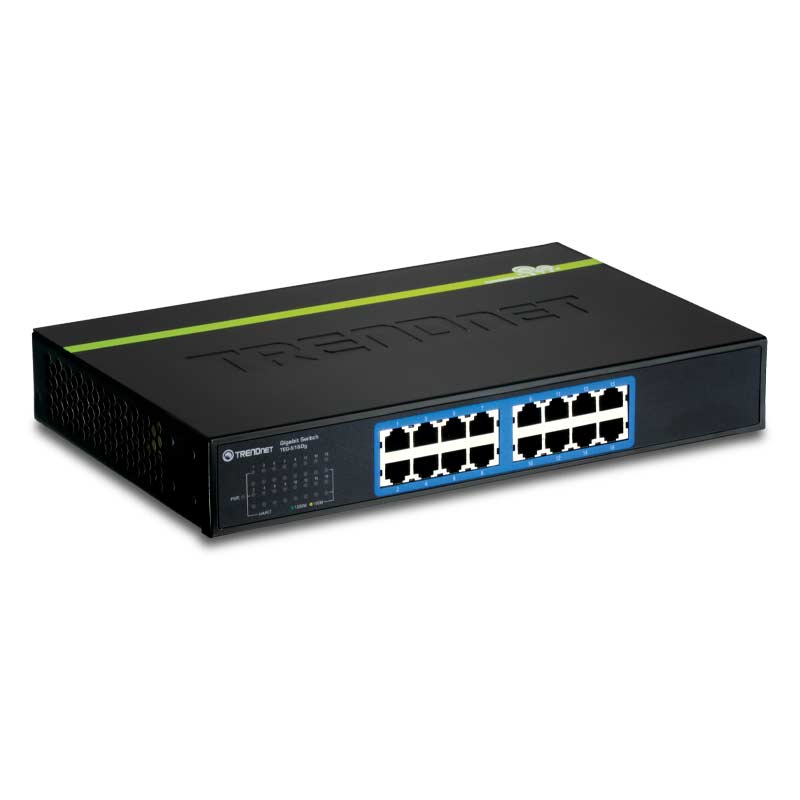

16-Port Gigabit Switch
The 16-Port Gigabit Switch offers high-speed, energy-efficient network connectivity for expanding networks with reliable gigabit performance.
16-Port Gigabit Switch
Key Features:
- GREENnet technology reduces power consumption by up to 70%*
- 16 x Gigabit Auto-MDIX RJ-45 ports
- Sturdy metal desktop switch with built in power supply
- 32Gbps forwarding capacity
16-Port Gigabit Switch is now available to rent from Nationwide Video.
Additional information
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3x Flow Control IEEE 802.3az Energy Efficient Ethernet |
|---|---|
| Ethernet | Cat. 5 up to 100 m |
| Fast Ethernet | Cat. 5 and 5e up to 100 m |
| Gigabit Ethernet | Cat. 5e and 6 up to 100 m |
| Data Rate | Ethernet: 10Mbps/20Mbps (half/full-duplex) Fast Ethernet: 100Mbps/200Mbps (half/full-duplex) Gigabit Ethernet: 2000Mbps (full-duplex) |
| Protocol / Topology | CSMA/CD, Star |
| Power Consumption | 7.2 Watts (max.) |
| Switch Fabric | 32Gbps |
| Interface | 16 x 10/100/1000Mbps Auto-MDIX RJ-45 ports |
| Data RAM Buffer | 2 MBits |
| Filtering Table | 8 K entries |
| Jumbo Frame Support | Up to 9216Bytes |
| Diagnostic LED | Power, Link/ACT, 100Mbps, 1000Mbps |
| Power | 100~240VAC, 50/60Hz Internal universal switching power |
| Dimension | 11 x 7 x 1.7 in. |
| Weight | 3.3 lbs. |
| Temperature | Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F) |
| Humidity | Max. 90% (non-condensing) |
