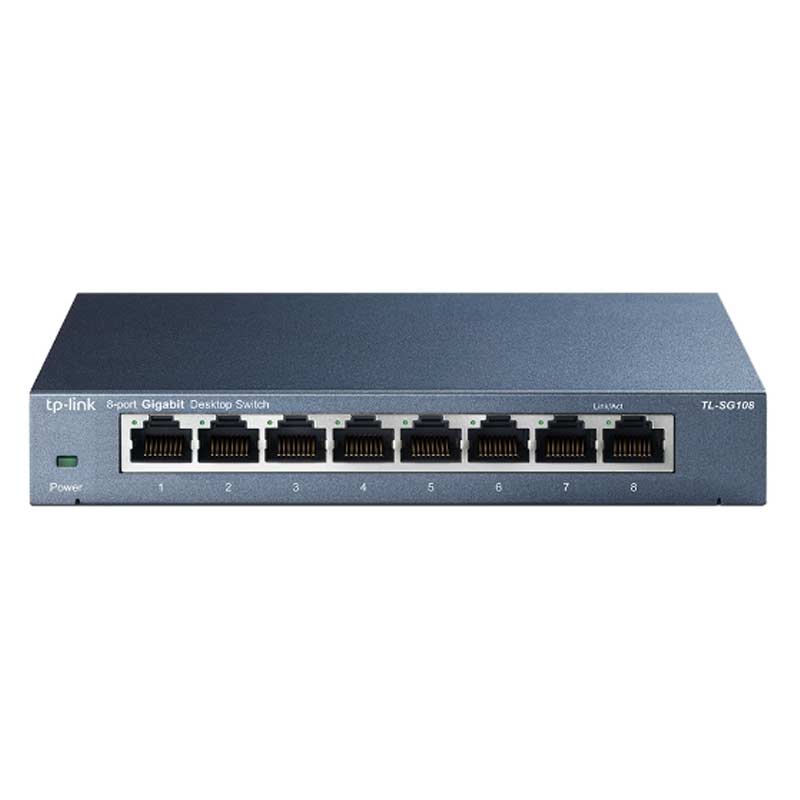

8-Port Gigabit Switch
The 8-Port 10/100/1000Mbps Desktop Switch delivers fast, reliable network connectivity with gigabit speeds across all ports.
8-Port Gigabit Switch
Key Features:
- 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves the power up to 82%
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoSÂ and IGMP Snooping function
- Plug and play, no configuration needed
The 8-port gigabit switch is available to rent from Nationwide Video.
Additional information
| Standards and Protocols | IEEE 802.3i / 802.3u / 802.3ab/ 802.3x /802.1p |
|---|---|
| Interface | 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| LED | System Power Link/Act indicators per port built into each RJ-45 port |
| Buffer Size | 1.5Mb |
| Dimensions ( W x D x H ) | 6.2 x 4.0 x 1.0 in. |
| Max. Power Consumption | 3.3W |
| Max. Heat Dissipation | 11.3BTU/h |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 16KB |
| Advanced Features | Green Technology, saving power up to 82% 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store and Forward |
| Certification | CE, FCC ,RoHS |
| Package Content | 8-Port 10/100/1000Mbps Desktop Switch Power Adapter |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing |
