Analog Way Aquilon RS2
The Analog Way Aquilon RS2 is a powerful 4K/8K multi-screen presentation system and video wall processor designed to withstand the highest-stakes applications.

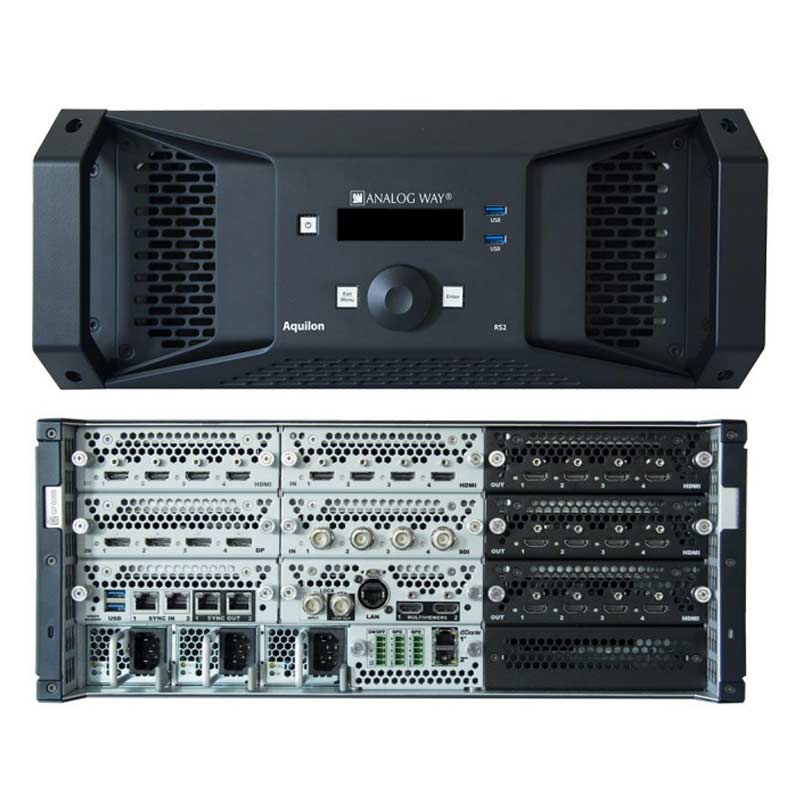

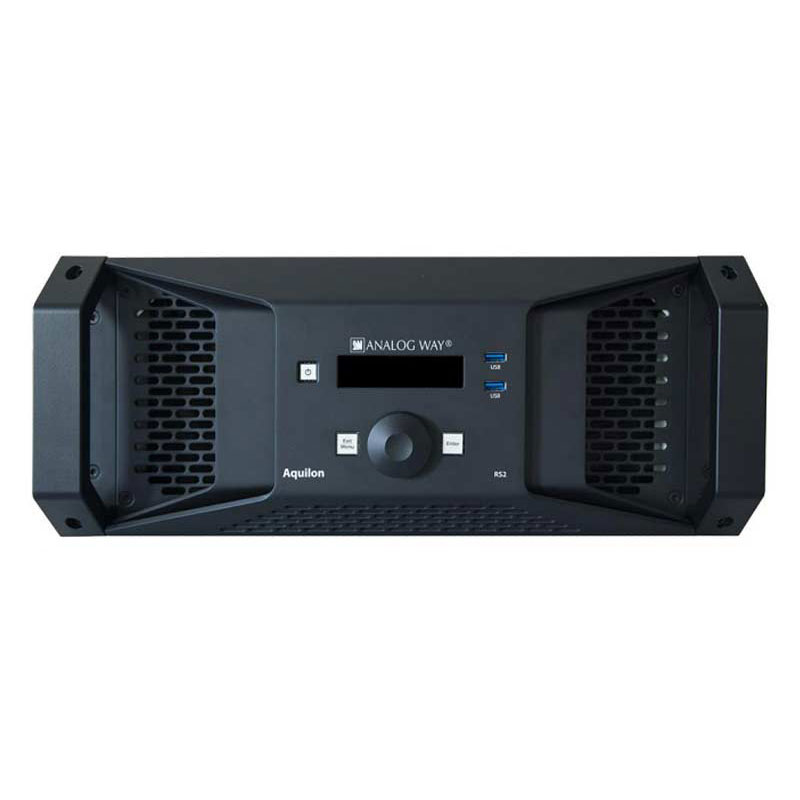

The Analog Way Aquilon RS2 is a high-performance 4K/8K multi-screen presentation system and video wall processor built for demanding live event environments. It features 16 inputs and 12 outputs, all capable of true 4K60p resolution, offering ultimate flexibility for complex video setups. With ultra-low latency and real-time 10/12-bit 4:4:4 video processing, the RS2 delivers visual clarity and precision. Its industrial-grade reliability makes it ideal for high-stakes applications where performance cannot be compromised.
The system supports seamless transitions, multi-layering, and advanced video effects across multiple displays. Users benefit from intuitive control via Analog Way’s Web RCS interface, designed for ease of use even in high-pressure environments. Aquilon RS2’s modular design and hot-swappable I/O cards ensure on-the-fly adaptability and serviceability. Its versatile 4K connectivity supports a wide range of digital formats, making it compatible with virtually any source. The RS2 is optimized for premium staging, corporate events, and broadcast. Overall, the Analog Way Aquilon RS2 combines top-tier performance, reliability, and flexibility for world-class presentation results.
Additional information
| 16 seamless inputs | 8 HDMI™ 2.0 (18 Gbps bandwidth allowing up to 4K60p 8-bit 4:4:4 or up to 4K60p 12-bit 4:2:2 or up to 4K30p 12-bit 4:4:4) 4x DisplayPort 1.2 (21.6Gbps bandwidth allowing up to 4K60p 10-bit 4:4:4 or up to 4K60p 12-bit 4:2:2) or up to 2x DisplayPort 1.4 (32.4Gbps bandwidth allowing up to 5K60p 10-bit 4:4:4 or up to 5K60p 12-bit 4:2:2) 4x 12G-SDI (up to 4K60p 10-bit 4:2:2) - also compatible with 3G-SDI and 6G-SDI (can be optionally replaced by 4x 12G-SDI + 1x 2.5GbE NDI-enabled port - ref. OPT-AQL-IN-IP-SDI) All input connector cards can be field-replaced to accommodate a variety of connectivity arrangements Field swappable input connector cards available separately: 8x HDMI™ 1.4 (upgradable up to 32x Dual/2K inputs), HDMI™ 2.0, DP 1.2/1.4, 12G-SDI, NDI+12G-SDI, SFP+, Optical, SDVoE, ST 2110 Supports 4K60p input as single, double or quad plugs (incl. 4x 3G‑SDI 2SI) Supports input formats such as 8192×1080@60p (aka “8k x 1k”) on a single connector Connector status LEDs for easy troubleshooting |
|---|---|
| 12 active 4K60p outputs via 3 pre-installed output connector cards | 12x HDMI™ 2.0 (18 Gbps bandwidth allowing up to 4K60p 8-bit 4:4:4 or up to 4K60p 12-bit 4:2:2 or up to 4K30p 12-bit 4:4:4) All output connector cards can be field-replaced to accommodate a variety of connectivity arrangements Field swappable connector output cards available separately: HDMI 2.0, DP 1.2/1.4, 12G-SDI, SFP+, Optical, SDVoE, ST 2110 Supports 4K60p output as single, double or quad plugs Supports custom output formats such as 8192×1080@60p (aka “8k x 1k”) on a single connector Connector status LEDs for easy troubleshooting |
| 2 dedicated multiviewer outputs | 2 dedicated HDMI™ 2.0 outputs configurable as up 2x 4K30p or up to 2x 2560x1440@60p or 1x 4K60p (version available separately with 2 Multiviewers DP 1.2 outputs, each compatible with the DPH104 video processor) 64 resizable widgets on each output Customizable layouts with 50 memories Monitor inputs, still images, screens (Program and Preview) as well as inboard clocks/countdown/timers 1x VU meter per Multiviewer output to monitor audio from the inputs |
| Native Dante Audio Networking | Audio de-embedding/embedding on every input & output (raw audio) De-embedded audio channels can be routed directly to the Dante™ network using onboard Dante™ card Audio channels from external Dante™ audio processor can be re-embedded for sending to display, streaming or recording device 64x64 Dante™ channels @48 kHz or 32x32 Dante™ channels @96 kHz Dual redundancy Ethernet ports - AES67 support |
| Flexible Screens and Layers Management | Outputs configurable as single screens or edge-blended widescreens Up to 12x Dual/2K60p program outputs or up to 8x 4K60p program outputs cloneable to any other unused outputs Flexible layer management: various content sizes (2K, 4K, …), Flexible layer management, mixing and split layers in the same screen, Region Captive PiPs for resource optimization, screens without layers (background only) Any unused output configurable as a scaled auxiliary 4K60p output to display any input, screen (1:1 or scaled) or inboard clocks, timers and countdowns Ability to create resizable layers on auxiliary outputs without using processing resources (adjacent outputs can be used to increase the number of available layers) 500 master memories, 1000 screen memories and 50 layer memories 3 possible startup configurations: blank, last known state or selected Master Memory |
| Up to 8x 4K Mixing Layers | Supports mixing layers (true seamless transitions) and split layers (cut transitions) Up to 8x 4K or 16x Dual/2K mixing layers (16x 4K or 32x Dual/2K split layers) depending on screens setup Layer source can be a live input, a still image, a screen PGM (for split layers only) or any of the inboard clocks, countdown and timers Each output has an unscaled background mixer supporting seamless transitions Background source can be still image or live source |
| Ultra-low Latency 10 and 12-bit Processing | Based on Analog Way exclusive 5th generation scaling engine Extremely low latency, as low as 1 frame in proper configuration 80 Megapixels throughput at 10 bits 4:4:4 @60Hz on Program, without restricting Preview or Multiviewer Real-time SDR/HDR10/HLG conversion and color correction based on 3D-LUTs High-end input keying algorithms: at input and layer levels: Luma-Key, Chroma-Key and Cut and Fill at input level only: 3D LUT based CremaTTe 3D (requires AW CremaTTe 3D software available on the website) Advanced motion compensation deinterlacing BT.601; BT.709; BT.2020 color spaces Compatible with HDCP 1.4 and HDCP 2.2 |
| Creative display configurations | 2 dedicated HDMI 2.0 outputs configurable as up 2x 4K30p or up to 2x 2560x1440@60p or 1x 4K60p (version available separately with 2 Multiviewers DP 1.2 outp Supports any combination of single-screen or widescreen applications Ability to place the program outputs anywhere on an almost limitless video canvas space for special LED wall applications Compatible with Analog Way DPH104 video processor: easily convert one 4K DP 1.2 output to four independent full HD outputs (requires a DP 1.2 output card) Custom output formats for non-standard display applications Independent resolution and rate on all outputs Rotation capability in increments of 90° Area of Interest option to customize active areas of outputs Advanced pixel pitch management & bezel compensation |
| Expandability Option | Supports any combination of up to 4 interconnected LivePremier devices Composed of a specific internal link card and a QSFP+ interface card installed in the lowest slot of each device Ability to add the outputs to a device in a single mode by replacing the QSFP connector card by any output card |
| Advanced Video Effects | True A/B Mix Misc. layer border effects/colors and separate shadow Transitions: Cut, Fade, Slide, Wipe, Circle, Stretch, Depth, Flying layer movement with programmable paths Layer effects: Transparency, H&V Flip, Cut and Fill Colors effects: B&W, Negative, Sepia and Solarize |
| 12 concurrent 4K still images | 12x 4K or 24x 2K concurrent still images - fully resizable Still images support alpha-channel Still image library with 100 memories Multi-file download/upload via Web RCS Capture from live inputs, outputs and multiviewers |
| Simple setup and advanced control | Web RCS: embedded intuitive drag and drop HTML5-based interface, with live video thumbnails, multi operator real-time collaboration and password protection, including up to 3 virtual RC400T controllers RC400T: powerful event controller, customizable via Web RCS AW VideoCompositor: Premium drag & drop Crestron® GUI Shot Box²/Control Box³: Cost effective control solutions Simple REST API and advanced TCP protocol based on JSON Crestron and AMX drivers Q-SYS control plugin |
| Other features | Highly ruggedized chassis with cleanable air filter Swappable redundant power supplies Quiet: 49dB average noise at 1m when ambient temperature is less than 32°C/90°F Dedicated BNC with loop out for Framelock, blackburst and tri-level sync EDID management on every input and output Backup and restore functions Tally/GPI-O Fully functional simulator for offline configuration and practice Expansion via simple linking possible (future hardware upgrade) |
