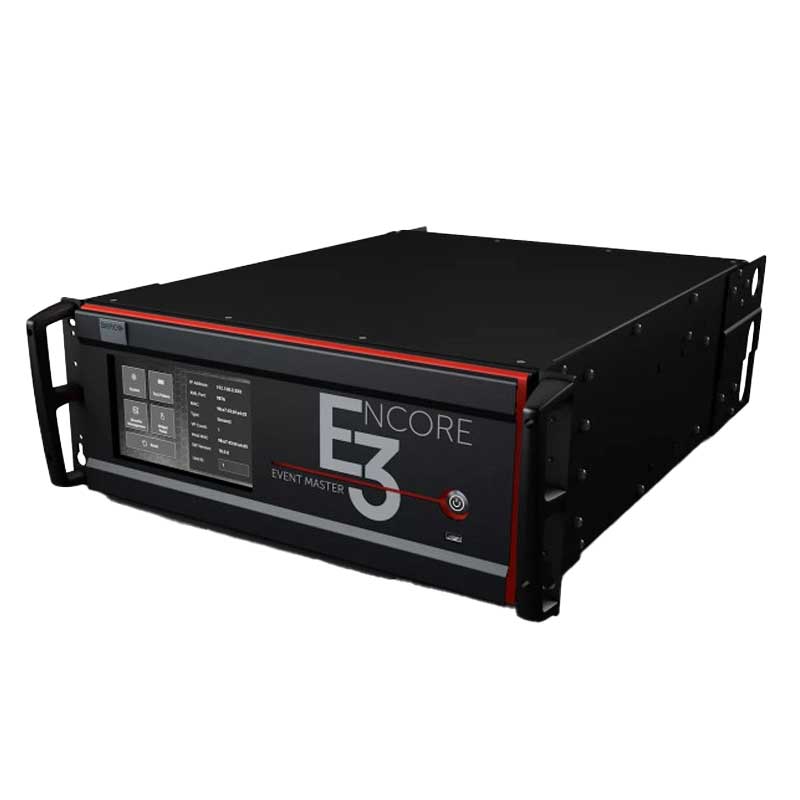

Transform your live events with the Barco Encore3, a cutting-edge video processor that sets the standard for seamless, high-performance video processing. Designed for versatility and reliability, the Encore3 delivers unparalleled image quality and operational flexibility, making it ideal for the most demanding live events, concerts, corporate presentations, and broadcast applications.
Key Features:
-
Advanced Processing Power: Harnesses the power of Barco’s latest technology to handle multiple inputs and outputs effortlessly, ensuring smooth operation even in complex setups.
-
Intuitive Control Interface: Streamline your workflow with an intuitive user interface that allows quick setup and adjustments.
-
High-Resolution Outputs: Supports ultra-high resolutions up to 4K, ensuring crisp, clear visuals on any display.
-
Seamless Integration: Compatible with a wide range of video sources and display devices, ensuring compatibility and ease of integration with existing setups.
-
Reliability: Built to Barco’s high standards of reliability, ensuring uninterrupted performance in critical applications.
-
Scalability: Expandable to meet the needs of large-scale productions, accommodating future growth and evolving technology requirements.
Additional information
| Live effects canvas | Up to 78.6 Megapixels with PVW & PGM |
|---|---|

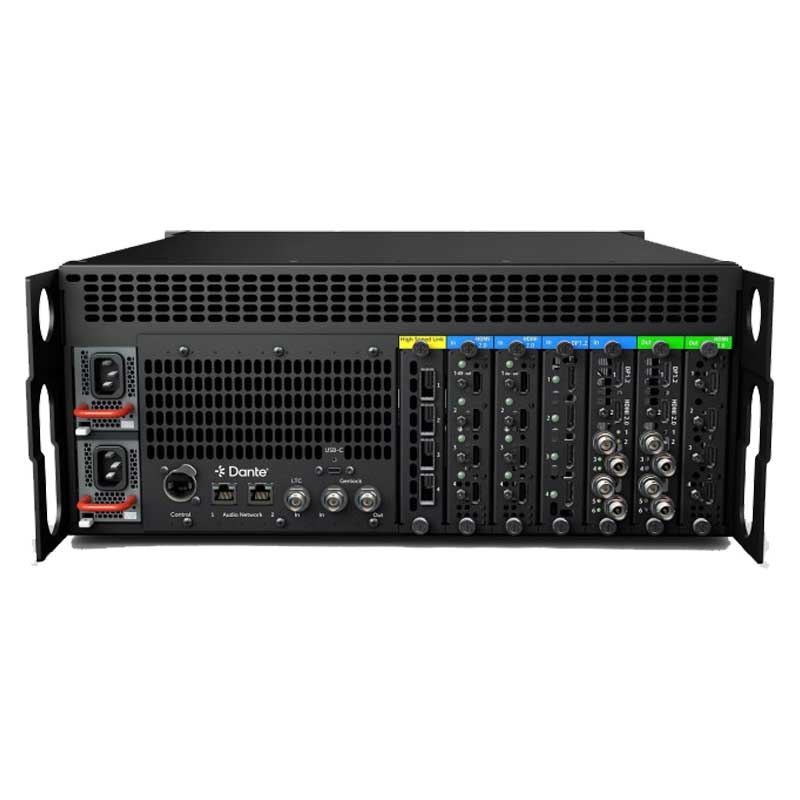

| Video inputs | Up to 7 input capable card slots to occupy with Event Master Gen2 cards · Each input card supports up to 4x 4K @60p inputs Standard Encore3 Configuration · 16x 4K @60p inputs · Up to 4x HD/3G/6G/12G SDI connectors · Up to 9x HDMI 2.0 (600 MHz max) · Up to 5x DisplayPort 1.2 (600 MHz max) |
| Video outputs | Up to 4 output capable card slots to occupy with Event Master Gen2 cards · Each output card supports up to 4x 4K @60p outputs Standard Encore3 Configuration · 8x 4K@60p outputs · Up to 4x HD/3G/6G/12G SDI connectors · Up to 5x HDMI (up to 600 MHz) · Up to 1x DisplayPort(up to 660 MHz) |
| Genlock | Analog reference input/Output on BNC connectors; bi-level and blackburst at SD and tri-level at HD |
| Program output | Up to 8 program outputs configurable as single screens or tiled/blended widescreens Configurable for up to 8x 4096 X 2400 @60p Independent edge blending/feathering control for all four sides |
| Scaled Aux outputs | User definable for up to 8x 4096 x 2400 @60p Each output card supports up to 2x AUX ouputs |
| Mixers | Positionable non-scaled background mixer per output screen Independent layer transitions or full Preview/Program transitions Pre-assigned 8 mixable / 16 single (Or 16 mixable / 32 single) scalable PIP/key layers per output screen |
| Still stores | Up to 400 HD or 100 UHD, depending on the import file size |
| Layer effects | Borders (hard, soft, halo) and drop shadows Color effects Strobe, H&V flip Luma, chroma and Cut/Fill keys PIP moves via Keyframes |
| Multiviewer | 2x 4K @60p MultiViewer as source that be sent to any output or layer. Flexible user-definable layouts Monitor all Inputs and screens PVW & PGM |
| Expandability | Easily expandable for larger display applications via 4x QSFP28 link connection. Encore3 Link card required. Link units to increase available Inputs and Outputs for larger tiled/blended widescreen applications Encore3 ships with the ability to link 2 chassis for expansion |
| HDCP | HDCP compliance determined by installed cards |
| Control | Event Master Toolset (V10.x or later) for PC or MAC Event Master controllers WebUI Ethernet RJ-45, 1000/100/10 Mbps autosense |
| Serviceability | Field-Serviceable I/O cards (not hot-swappable) Hot-swappable dual-redundant power supplies |
| Dimensions | Height: 17.8 cm (7.0 in) -4 RU rackmount Width: 44.2 cm (17.4 in) without chassis handles, 48.5 cm (19.1 in) with chassis handles attached Depth: 62.4 cm (24.6 in) from front panel to rear panel, 67.2 cm (26.4 in) overall |
| Power | Input power: 100-240Vac, 50/60Hz, 12-5A (x2), 1,100 W Dual-redundant, hot-swappable power supplies |
| Environment | Environmental temperature 0-40° C / 32-104 F Environmental humidity 0-95% non-condensing (non-operating) |
