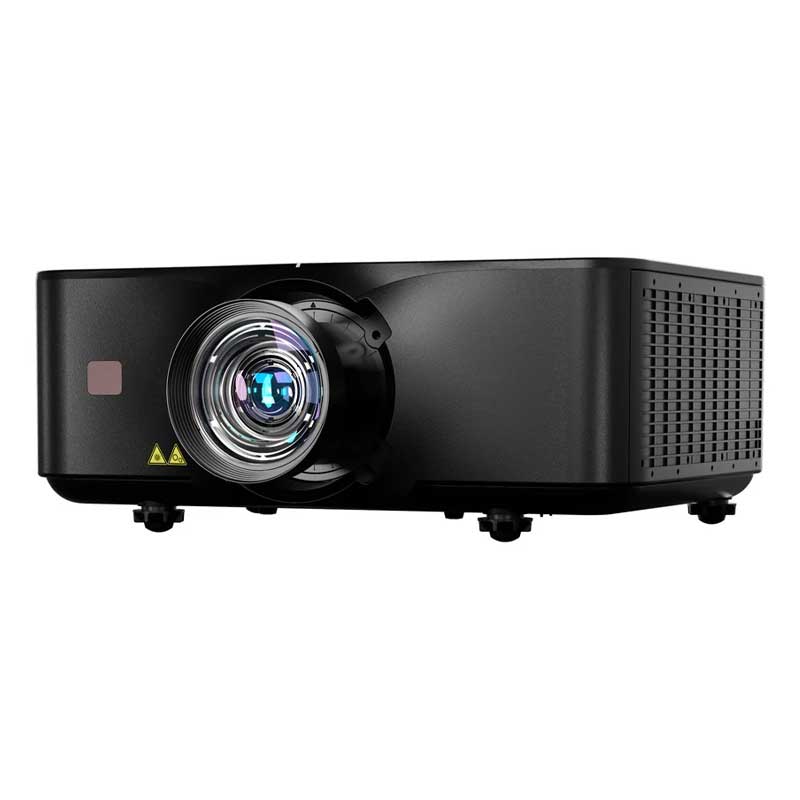

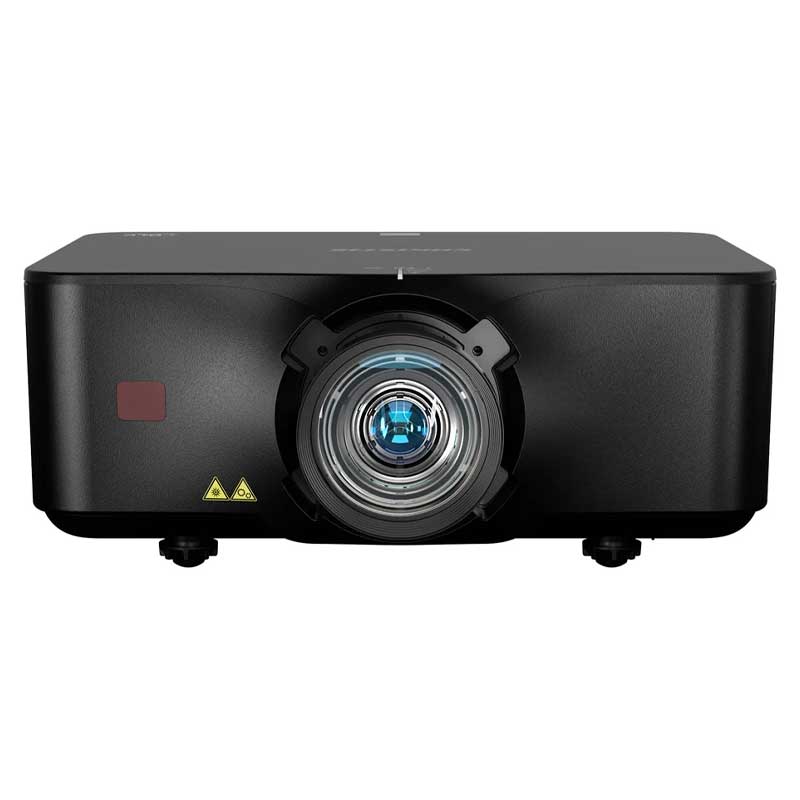

Christie Korus 4K1000-KS 10K 1DLP Projector – 10,050 lumen, 4K UHD+, compact, lightweight, and versatile 1DLP laser projector.
The Christie 4K1000-KS is a compact and versatile 1DLP laser projector designed to deliver 4K performance for professional AV applications. Producing 10,050 ISO lumens of brightness, it delivers vibrant, detailed images while maintaining a lightweight 38-pound form factor. Its 4K UHD+ resolution of 3840 x 2400 provides exceptional image clarity and added vertical resolution for demanding presentations, live events, and installations.
Powered by an advanced 0.8-inch High Efficiency Pixel (HEP) DMD and high-efficiency blue laser phosphor illumination, the 4K1000-KS combines strong visuals with efficient operation. The laser light source provides up to 20,000 hours of operation at full power and up to 50,000 hours in ECO mode. With eight interchangeable lens options, including an ultra-short-throw lens, the projector can accommodate a wide variety of room sizes, screen configurations, and installation requirements.
Built-in Christie Twist provides warping and blending capabilities, while optional Christie Mystique enables automated camera-based alignment for more complex multi-projector applications. Connectivity options include dual HDMI 2.0b, 12G-SDI, DisplayPort 1.2a, HDBaseT 3.0, and USB 2.0, making it easy to integrate into various workflows.
Additional information
| Brightness | 10,050 ISO lumens / 8,500 ANSI lumens |
|---|---|
| Color Wheel | 4 segment - 4X speed |
| Contrast Ratio | 1,500:1 Full On/Off |
| Dynamic Contrast | 25,000:1 |
| Display Type | 1 x 0.8" HEP DMD |
| Illumination type | High-efficiency blue laser phosphor |
| Illumination performance (hrs) | 20,000 hours to 50% brightness |
| Orientation | Omnidirectional |
| Scan rates | Horizontal: 15.375 KHz~ 135.0 KHz ; Vertical: 23.98 Hz ~ 120 Hz |
| Pixel clock rate | 600 MHz |
| Resolution | 4K UHD+ 3840 x 2400 WUXGA 1920 x 1200 (native) |

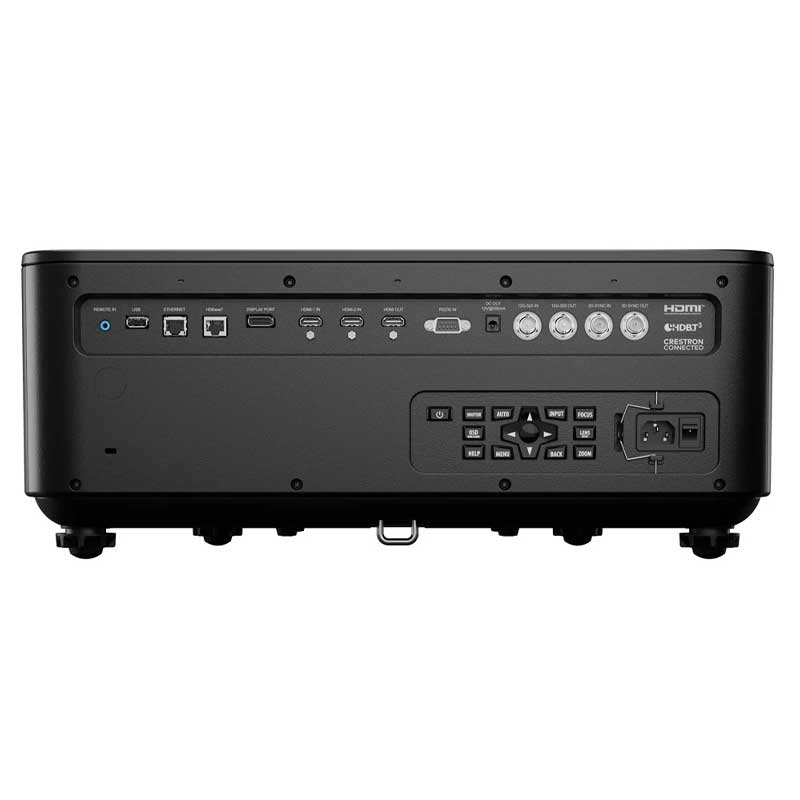

| Signal inputs | HDMI 2.0b x 2 (HDCP 1.4/2.2) 12G-SDI x 1 (BNC) Display Port x 1(1.2a) USB 2.0 x 1 (Type A) HDBaseT 3.0 (RJ45) x 1 |
| Signal outputs | 12G-SDI x 1 (BNC) HDMI x 1 (HDMI out) |
| Control and networking | HDBaseT 3.0 (RJ45) x 1 RJ45 x 1 (Ethernet Control over wired network connection) RS232 x 1 Remote in: 3.5mm stereo female (provides serial communications and power) DC jack 12VDC, 200 mA max |
| Warping and blending | Standard: Christie Twist Optional: Christie Twist Premium and Twist Pro Christie Mystique automated camera-based alignment |
| Power requirements | Operating voltage: 100-240 VAC @ 50/60 Hz Power consumption: Normal: 656W ECO1: 527W ECO2: 380W Operating Current: 7.0A (100-240 VAC) |
| Dissipation | Normal mode: 2,237 BTU/hr Eco1: 1,797 BTU/hr Eco2: 1,296 BTU/hr |
| Audible noise | Standard mode: 40dBA (max) Eco mode: 38dBA (max) |
| Dimensions (L x W x H) | 16.4 x 21.1 x 7.6" without feet |
| Weight | 38 lbs |
| Shipping dimensions (L x W x H) | 23.4 x 28.1 x 15.6" |
| Shipping Weight | 50.5 lbs |
| Operating environment | Temperature: 32-104 F (0-40 C) (0 – 2,500 feet altitude) Humidity: 10 - 85% non-condensing |
