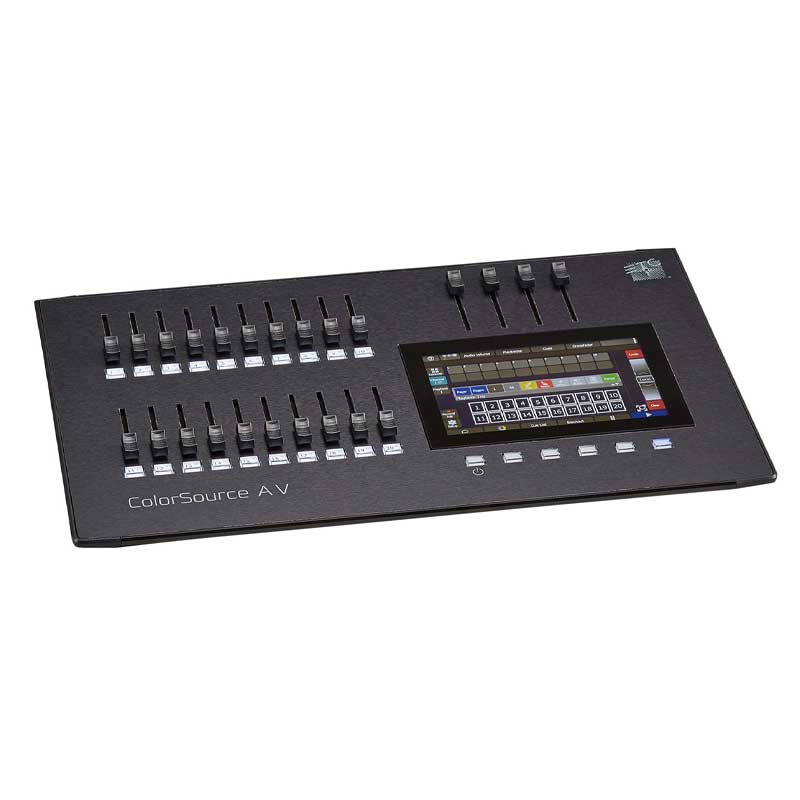

ETC ColorSource 20 AV Console
Whether you're patching fixtures or running a live show, the intuitive interface helps you navigate and program with speed and confidence.

ColorSource consoles make setup and programming effortless from start to finish. Whether you’re patching fixtures or running a live show, the intuitive interface helps you navigate and program with speed and confidence. The versatile onboard touchscreen offers a customizable stage map, full color and parameter controls, an integrated palette system, dynamic effects manipulation, and Playback Toy live busking features.

Onboard faders can be used for direct channel control or playback functions, giving you flexibility during performances. For fully programmed shows, ColorSource consoles provide a powerful cue stack system to streamline operation. Additional faders can be easily assigned as submasters, group masters, or a grandmaster, adapting to the needs of any production.

Key Features:

  • 80 control channels/devices
  • 7″ integrated multi-touch display
  • 4 user-definable master faders
  • 5 user-definable buttons for common commands
  • Virtual level/rate paddle
  • Cue list record and playback functions
  • Non-intensity parameter control
  • Console lockout
  • Color, Position and Beam Pallettes
  • Color, intensity, position and parameter effects
  • Intuitive color control of LEDs
  • RDM discovery & configuration
  • Onboard help system
  • “Simple Mode” operation for 4 looks
  • Playback Toy for live busking
  • Kensington Security Slot

Additional information

MECHANICAL • One home and five configurable softkey buttons • Four configurable function faders • 7” color multi-touch touchscreen
PLAYBACK CONTROLS • One cue list with 999 cues • 10 pages of 20 or 40 playbacks - Static memories or sequences • Playback Toy for filtered and timed execution of playbacks • Mulitple bump modes (Flash, Solo, Solo Change, Move/Go) • Full-history rubberbanding for playbacks • On-board help system • On-board start-up tutorial videos • Extensive library for controlling moving lights
MEDIA • Audio input type: - 3.5mm (1/8”) TRS, Stereo, unbalanced - Line in -10dBV (316mV RMS) - Input Impedance: 29k ohms • Audio output type: - 3.5mm (1/8”) TRS, Stereo, unbalanced - Line out -10dBV (316mV RMS) at 10k ohms “Line Level” - Load Impedance : 10k – 200k ohms • Supported media file formats: - Audio: mp3, aac and wav files (44.1kHz sample rate, 4GB maximum file size) - Image: jpg, png, tiff, and bmp files (1280 x 720 maximum resolution)
PROGRAMMING TOOLS • 40 programmable color chips and color picker • Innovative touch-based parameter controls • Auto fixture selection on fader moves • Virtual Level/Rate wheel • Cutomizable Channel display using Stage Map • Effects (intensity, color, shape, and parameter) • Fixture Tags for Quick Selects • 27 Quick Select groupings • Two independent channels • Virtual keypad for level entry
UNIQUE FEATURES - 40 channels / multi-parameter devices - 20 Channel / Playback faders with color indication - Two DMX/RDM ports - Two USB ports - RJ45 for network (sACN, ArtNet, OSC) - Sound-to-light playback - HDMI® port for monitor or media playback - “Amigo” browser-based remote - 25GB onboard storage for show files and media
