L-Acoustics P1 AVB Processor
The L-Acoustics P1 is a versatile AVB processor and measurement platform that integrates seamlessly into modern audio systems.

The L-Acoustics P1 is a versatile AVB processor and measurement platform that integrates seamlessly into modern audio systems. Featuring a 20-input by 16-output architecture, it supports AVB, AES/EBU, and analog audio formats, ensuring flexible connectivity. Its dual-core DSP engine provides advanced processing capabilities, including EQ, delay, and dynamics control, across eight DSP buses and a cue bus. The P1 also incorporates a multi-microphone acoustic measurement platform, facilitating precise system calibration and tuning. With Milan certification, it offers seamless network redundancy for reliable audio distribution. A front-panel TFT color touchscreen and integration with LA Network Manager software allow for intuitive control and monitoring. Additional features include a built-in signal generator and media player, enhancing its utility in various applications. Housed in a compact 1U chassis, the P1 is an essential tool for professionals seeking efficient and high-quality audio processing solutions.

Additional information

Mains rating 100 V - 240 V ( ±10%), 50-60 Hz
connector Lockable IEC connector C13 with power on/off button
Digital Signal Processor (DSP) Dual SHARC 32-bit, floating point, 96 kHz sampling rate
Matrix Mixing 20 inputs to 8 independant busses Mute, gain, PFL/AFL
Busses 8 busses + cue bus
Processing per bus Mute, gain, polarity Delay up to 4000 ms 16 EQ filters
Direct routing From any input to any output
System tuning Integrated measurement platform for M1
Analog or AES/EBU 0.5 ms pass thru
DSP propagation delay 0.37 ms
Signal distribution Time-aligned redundant audio
AES/EBU Sample Rate Converter (SRC) Operating at 24 bit / 96 kHz
Analog mic/line 4 mic/line channels on 4 female 3-pin XLR (front) 48 V phantom power Gain 0 to 60 dB 2nd order highpass filter 40 Hz
Processing per input Mute, gain, polarity, gang
Processing per output Mute, gain, polarity, gang

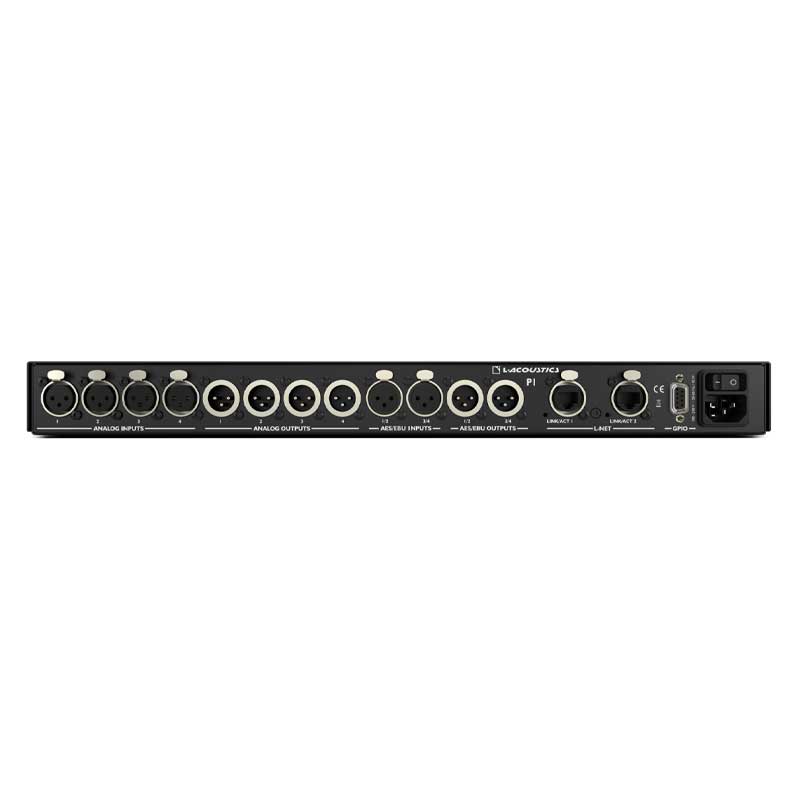

Analog line 4 line channels on 4 male 3-pin XLR
Milan-AVB 8 audio channels from 2 independent Milan-AVB streams Sampling frequency: 48 kHz or 96 kHz
AES/EBU 4 AES/EBU output channels (2 x AES3) on 2 male 3-pin XLR Sampling frequency and word length: 96 kHz at 24 bits
headphones Stereo Minimum load : 32 ohms

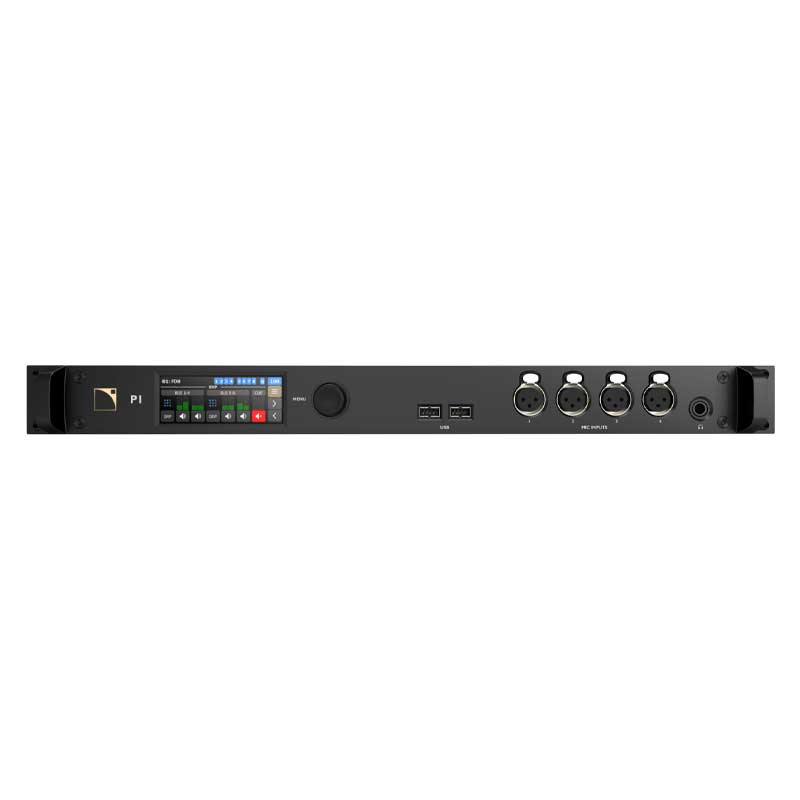

Display 1 TFT color touchscreen display (320 × 120 px)
navigation 1 encoding wheel with push button
Network connection Dual-port Ethernet Gigabit interface Milan seamless dual network redundancy
L-Acoustics remote control software LA Network Manager
General purpose inputs and outputs (GPIO) 2 GPI + 2 GPO on DB9 female connectors
Third-party management solutions QSC® / SNMP / Crestron®
Temperature 0º C / 32º F to +50º C / 122º F
Signal generator Sine wave, sine bursts, sweep, white noise and pink noise
Media player Stereo output at 24 bit / 96 kHz
Height 1U
Weight 8.2 lbs
