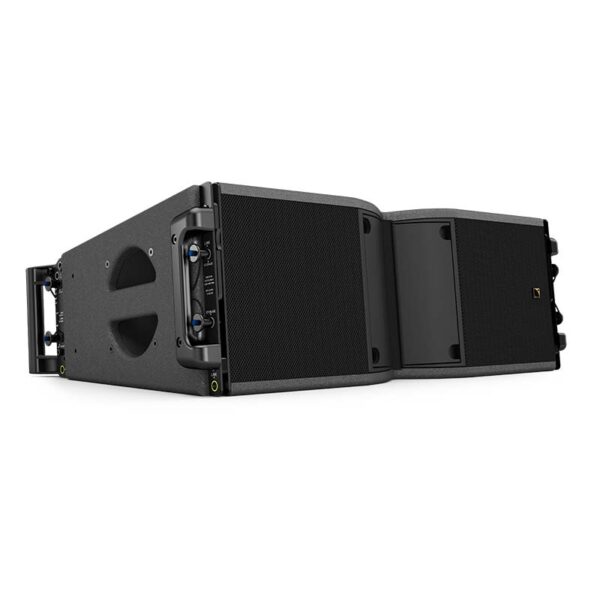

Part of the K Series, Kara II is a modular line source system that can be deployed standalone or with its companion subwoofer SB18. Assembled as a variable curvature line source with class-leading SPL per weight and footprint, Kara II is ideal for applications that require clarity and long throw capability such as performing arts, congregations, large corporate, or special events.
Based on the Kara design, Kara II adds flexibility with Panflex. A single Kara II enclosure offers four horizontal directivity patterns: 70° or 110° symmetrical and 90° asymmetrical on either side. With a tighter control of the directivity, the 70° setting brings an additional 2 dB compared to the 110° setting increasing throw capability. With Panflex and inter-element angles ranging from 0° to 10°, a Kara II line source coverage can be precisely tailored to any audience geometry.
On its own Kara II can be used as a main system for vocal reinforcement and music material with light LF requirements or as a complement to large sound systems in fill and delay applications. Associated with its companion subwoofer SB18, Kara II modular system can accommodate any program material requiring bandwidth, contour and output.
Additional information
Description | 2-way active WST enclosure, amplified by LA4X / LA8 / LA12X |
---|---|
Usable bandwidth | (-10 dB) 55 Hz - 20 kHz ([KARA II 70]) |
Maximum SPL1 | 142 dB ([KARA II 70]) |
Nominal directivity | Vertical : depending on number of elements and array curvature Horizontal : 70° / 110° symmetric or 90° asymmetric (35°/55°) |
Transducers | LF: 2 × 8’’ neodymium cone driver HF: 1 × 3’’ neodymium diaphragm compression driver |
Acoustical load | LF: Bass-reflex HF: DOSC waveguide, Panflex |
Nominal impedance | LF: 8 Ω HF: 8 Ω |
Connectors | IN: 1 × 4-point speakON LINK: 1 × 4-point speakON |
Rigging and handling | Four-point captive rigging system 2 side handles, 2 rear handles Inter-enclosure angles [deg]: 0, 1, 2, 3, 4, 5, 7.5, 10 |
Weight (net) | 57 lb |
Cabinet | Premium grade Baltic birch plywood |
Front | Coated steel grill Acoustically neutral 3D fabric |
Rigging components | High grade steel with anti-corrosion coating |
Finish | Dark grey brown Pantone 426 C |
IP | IP55 |
