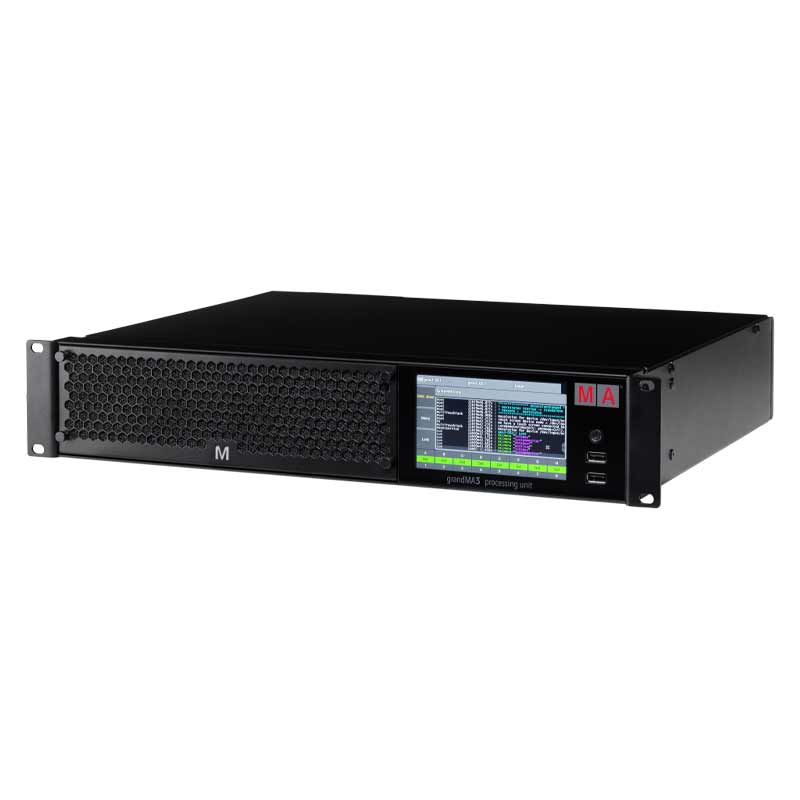

MA Lighting grandMA3 Processing Unit M
The MA Lighting grandMA3 Processing Unit M is a versatile and powerful solution for expanding control in professional lighting systems.

The MA Lighting grandMA3 Processing Unit M is a versatile and powerful solution for expanding control in professional lighting systems. It provides additional processing power to handle complex shows, ensuring smooth and reliable operation even with large numbers of parameters. Designed to integrate seamlessly with grandMA3 consoles and on PC setups, it extends the system’s capabilities with precision and efficiency. The unit supports up to 8,192 parameters, making it ideal for mid- to large-scale productions. Its robust hardware and advanced software architecture guarantee stable performance in demanding environments. Compact yet durable, the Processing Unit M is built for life on the road, from touring to corporate events and installations. Connectivity options are extensive, with redundant power supplies and multiple network ports for maximum reliability. Easy to configure and monitor, it features an intuitive interface that aligns with the rest of the grandMA3 family. Whether in theatre, live concerts, broadcast, or large-scale events, it ensures consistent, top-tier lighting control. With the grandMA3 Processing Unit M, designers and operators gain the flexibility and confidence needed to deliver exceptional shows every time.

Additional information

Parameters 4 096 (HTP/LTP)
Parameters Mode2 4 096 (HTP/LTP)
Operating voltage/ Supply voltage AC 100 - 240 V; 50/60 Hz
Power max. 200 VA
Operating Temperature 0 °C up to 40 °C / 32 °F up to 104 °F
Dimensions 19 x 15 x 4 in (width x depth x height)
Net weight 12 lbs

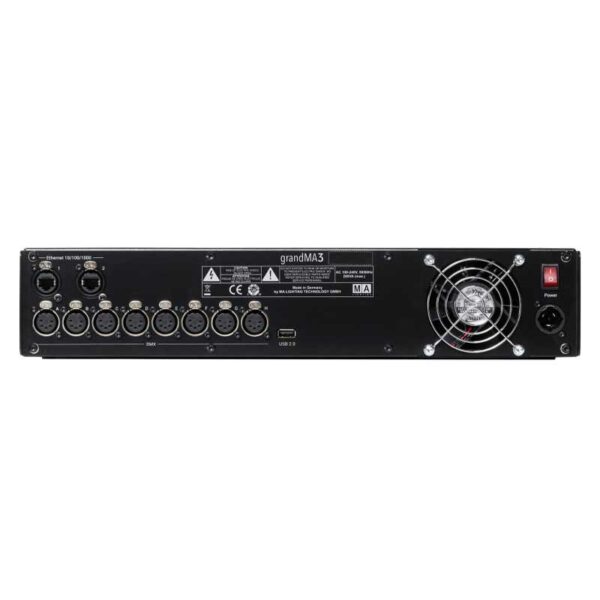

Connectors 1 x powerCON TRUE1 2 x etherCON/RJ45 8 x DMX512-A Out (5pin XLR female) 3 x USB 2.0 (type A)
