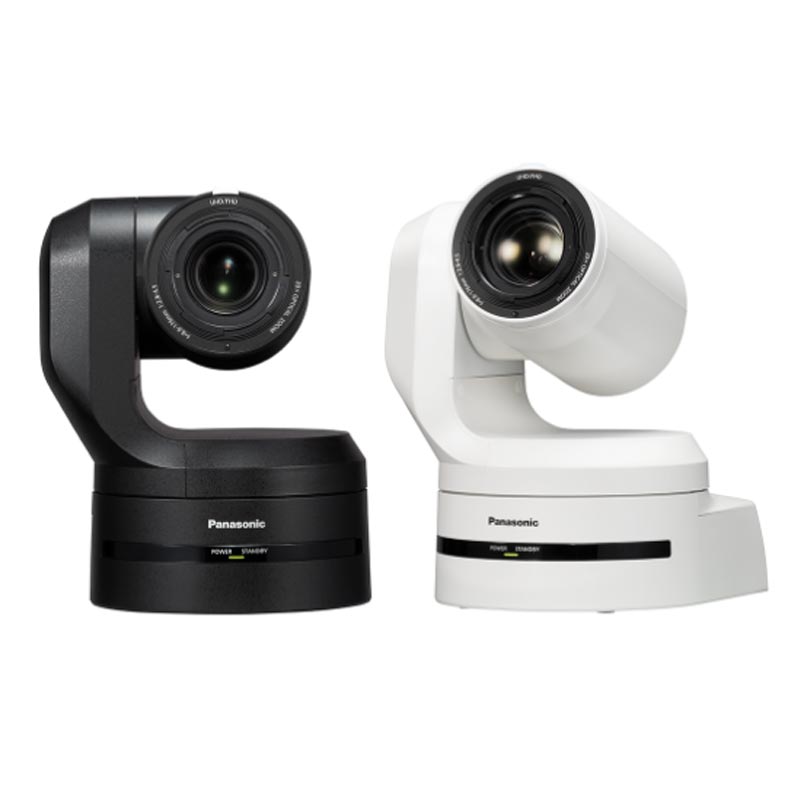

Panasonic AW-HE145 HD/60P PTZ Camera W/ 20X Zoom
The Panasonic AW-HE145 HD/60P PTZ Camera realizes high sensitivity of F9/2000lx with the mounted 1.0-type MOS sensor, and can shoot beautifully at stage events or church services with low light. The operation mechanism is the same design as the high-end model, so the operating performance of the pan/tilt and zoom is smooth and accurate, allowing you to shoot without stress. Furthermore, it is equipped with an optical 20x zoom and horizontal 75.1° wide-angle lens to realize flexible video production.
- High sensitivity achieved with the 1-type large-sized sensor
- Optical 20x zoom/horizontal 75.1° wide-angle shooting
- Pan/tilt performance that achieves smooth and accurate operation
- Enables high-quality video production even in dark environments
- SRT support for stable video transmission
Additional information
| LENS | Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)] |
|---|---|
| MINIMUM ILLUMINATION | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Zoom | • Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x• Digital extender zoom: 1.4x, 2x |
| Horizontal Resolution | 1,500 TV Typ (Center area, UHD mode, wide)1,000 TV Typ (Center area, FHD mode, wide) |
| Input Connectors | DC 12 V IN, G/L IN(BNC)BBS (Black Burst Sync), tri-level sync supported) |
| Current consumption | 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) |
| Power Requirements | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) |
| Optical Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode") |
| NDI Support | NDI® |
| Mic/line input | AAC compatibility (compatible with IP only)Φ3.5 mm stereo mini jack• During MIC inputInput level: -40 dBV (0 dB=1 V/Pa, 1 kHz)Supply voltage: 2.5 V±0.5 V (plug-in power compatible)"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)Approx. 20 kΩ (when plug-in power is turned OFF)"• During LINE inputInput level: -10 dBVInput impedance: Approx. 3 kΩ• Input volume variable range: -36 dB to 12 dB (3 dB step)• Embedded audio output level: -12 dBFS• Sampling frequency: 48 kHz• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP) |
| IP connecting cable | If you have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)• If you don't have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft) |
| AW protocol connecting cable | LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft) |
| Image Stabilization | OIS 2-axisMENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT) |
| Electronic Shutter Speed | 59.94p/59.94i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 29.97p | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 50p/50i | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Electronic Shutter Speed | 25p | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Input/Output Connector | LAN | LAN terminal for IP control (RJ-45) |
| Input/Output Connector | RS-422 | CONTROL IN RS422A(RJ-45) |
| Video Output | HDMI | HDMI 2.0 connector, 4:2:2/10bit• HDCP is not supported.• Viera Link is not supported |
| Supported protocol | IPv4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT |
| Supported protocol | IPv6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTSP/RTP, MLD, ICMP, ARP, SRT |
| Image Resolution | NDI® |
