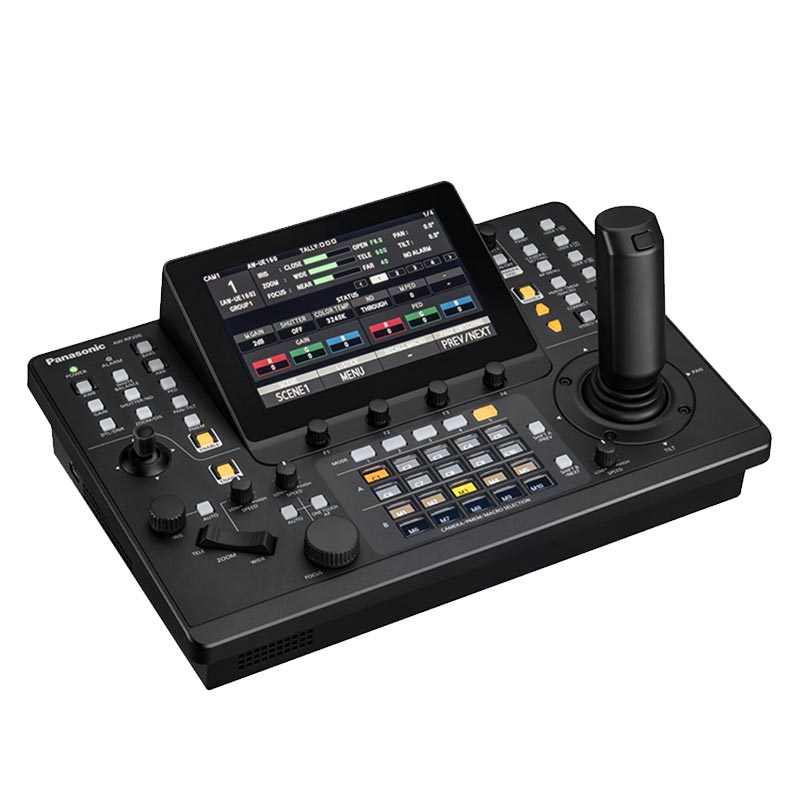

Panasonic AW-RP200 Controller
The Panasonic AW-RP200 controller introduces powerful new features such as convenient macro functionality for executing complex camera operations with ease.
Panasonic AW-RP200 Controller
The AW-RP200GJ, building on its predecessor’s (AW-RP150GJ) highly regarded operability, introduces powerful new features such as convenient macro functionality for executing complex camera operations with ease, and dual left and right joysticks for flexible control. Such innovations enhance the controller’s performance for multi-camera productions, including in large-scale shooting environments, to elevate video content value.
- 20 Multi-select Switches for Camera Selection, Preset Control and Macro Control
-
- Precise, Efficient Control with Multi-select Switches
- Panasonic’s First Remote Camera Controller to Support Macro Functionality
-
- One-touch Macros for Executing Complex Camera Operations
- Handy Second Joystick on Left
-
- Dual Joysticks for Enhanced Operability
- Advanced Functionality for Efficient Control Across Diverse Systems
-
- Supports up to 200 PTZ Cameras
- WFM and Vectorscope Display Support
- New LCD for Monitoring Camera Status and Settings
- Dedicated Web UI for Various Configurations
- Shortcut Buttons for Quick Access to Frequently Used Features
- Video Input via NDI® and SRT (Full HD)
Additional information
| Power Requirements | 12 V DC, DC 42 V to 57 V (PoE++ power supply) |
|---|---|
| Current Consumption | 3A (Connector Input), 1A (PoE++ power supply) |
| Ambient Operating Temperature | 32 °F to 104 °F |
| Storage Temperature | -4 °F to 122 °F |
| Allowable Humidity | 20 % to 90 % (no condensation) |
| Mass | Approx. 7.72 lb |
| Dimensions (W x H x D) | 14-11/32 inches x 7 inches x 9-21/32 inches (excluding protrusions) |
| Input | DC 12 V IN XLR 4‑pin 3G SDI IN SMPTE424M*1/SMPTE292M / 75 Ω (BNC x 1) Supported formats: 1080/59.94p*1, 1080/50p*1, 1080/29.97p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i |
| Output | 3G SDI OUT SMPTE424M*3/SMPTE292M / 75 Ω (BNC x 1) |
| Input/Output | LCD Display 7-inch Touch Panel GUI Monitor (WVGA (800x480)) |
| Connection Specifications | No. of Connectable Cameras 200 (IP), 3 (RS-422) No. of Camera Selection Buttons 20 |
| Memory | Preset Memory No. of memory presets 100 per camera Tracing Memory Maximum total duration: 5 minutes per camera; Maximum of 10 settings per camera (CAM1 to CAM10) Macro Memory No. of macros 100 |
