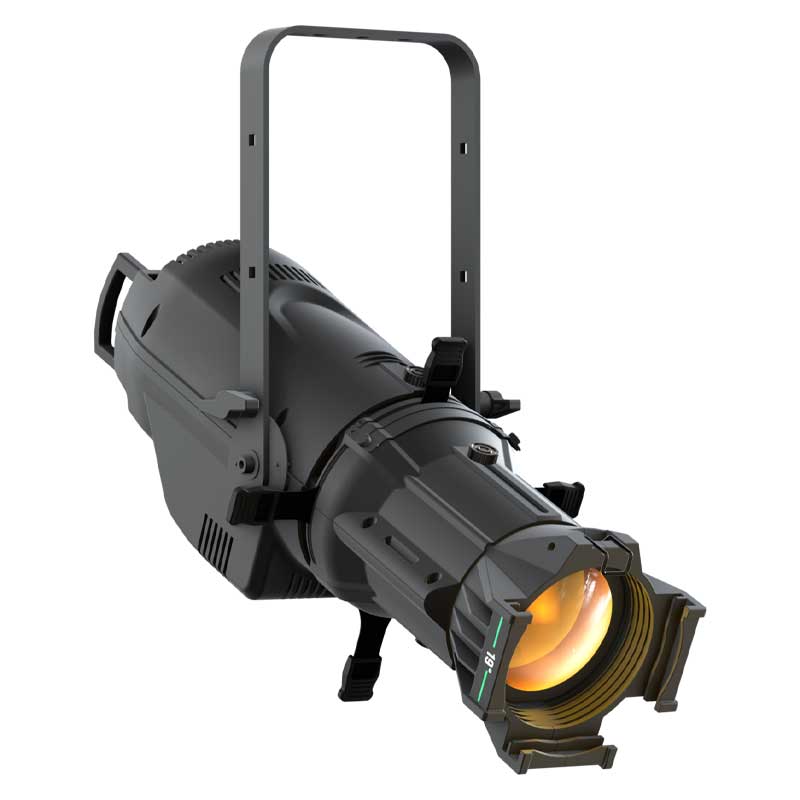

The ProLights EclProfile FS Ellipsoidal Light is a professional-grade lighting fixture designed to deliver powerful output, precise projection, and an extensive range of colors for live events, theatrical productions, broadcast, and corporate applications. Its RGB + Lime LED engine, featuring 91 x 3W LEDs, produces everything from rich saturated colors to subtle pastels and clean whites. The fixture offers adjustable white presets ranging from 2,700K to 10,000K, giving lighting designers flexibility across a wide variety of environments and creative looks. High-definition glass optics provide sharp focus and precise gobo projection, making the EclProfile FS well suited for both traditional profile lighting and more creative applications. A wide selection of optional fixed and zoom lenses allows the fixture to accommodate different throw distances and beam requirements.
The EclProfile FS supports DMX512 and RDM, providing flexible control, remote addressing, and convenient fixture configuration. Its electronic dimming system delivers smooth 0–100% dimming, while selectable PWM frequencies help optimize performance for live production, broadcast, and camera environments. The fixture also features Neutrik powerCON TRUE1 power input/output connections and 5-pin XLR signal connections for straightforward integration into professional lighting systems. A durable die-cast aluminum housing, low-noise cooling system, and approximately 50,000-hour LED source life make it a dependable option for demanding production environments. Combining versatile color reproduction, precise optics, professional connectivity, and robust construction, the ProLights EclProfile FS is a flexible full-spectrum ellipsoidal for productions that require both creative control and reliable performance.
Additional information
| LIGHT SOURCE | Source: 91x3W RGB + Lime LEDs Source CCT: @full 5.000K Luminous flux: (5°) TBD; (10°) TBD; (14°) 4'619 lm; (19°) 5'133 lm; (26°) 6'100 lm; (36°) 5'970 lm; (50°) 5'596 lm; (70°) TBD @Full Lux: (5°) TBD; (10°) TBD; (14°) 4'321 lx; (19°) 2'567 lx; (26°) 1'711 lx; (36°) 873 lx; (50°) 462 lx; (70°) TBDlx @5 m full CRI: 86 @3.200 K; 85 @5.600 K TLCI: 82 @5.600 K TM30 Rf: 84 @3.200 K TM30 Rg: 109 @3.200 K Source life expectancy: > 50.000 h |
|---|---|
| OPTICS | Lens type: high-quality glass lens optics Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50 Focus: manual |
| COLOR SYSTEM | CCT: CCT control through dedicated DMX channel White presets: 2.700 K ~ 10.000K Color wheel: virtual color wheel with macros |
| DYNAMIC EFFECTS | Static mode: selection of static color Manual mode: manual adjustment of color Auto mode: built-in programs with execution speed adjustment Special features: different presets for fan mode and output management Other: automatic software color balance when fixture warms up - linear crossfade from a white to any color and virtual CTO app |
| GOBOS | Gobo size: (B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness |
| CONTROL | Supported Protocols: DMX512, RDM DMX channels: 1 / 2 / 3RGB / 4RGBL / 5RGBL / 3 / 4 / 5 / 8 / 13 ch - Tungsten / 3.200 K / 5.400 K / 6.500 Kch RDM: for remote addressing and parameter configuration Display: Graphic User Interface Master/Slave: for synchronized operation of more units linked in a chain |
| ELECTRONICS | Dimmer: linear 0 - 100% electronic dimmer Strobe / shutter: 1 - 25 Hz, electronic Display battery: included, self-charging battery backup Selectable PWM: 600 to 25000 Hz (selectable steps) Firmware upgrade with: via DMX with UPBOXPRO/UPBOX2 (not included) |
| CONNECTIONS | Power connection: Neutrik powerCON TRUE1 IN/OUT connectors Signal connection: Amphenol XLR 5p IN/OUT connectors |
| ELECTRICAL | Mains power supply: 100-240V - 50/60Hz Max power consumption (230V): 220W Output (at 230V): 10 units on a single power line Standby power: 5 W Power factor: > 0,95 |
| PHYSICAL | IP rating: IP20 Cooling: low-noise fan Housing: Sturdy die-cast aluminum body Finish: black Operating temperature: -4 to +113 °F Dimensions (WxHxD): 10.43''x10.2''x21.26'' Weight: 16.09lbs |
