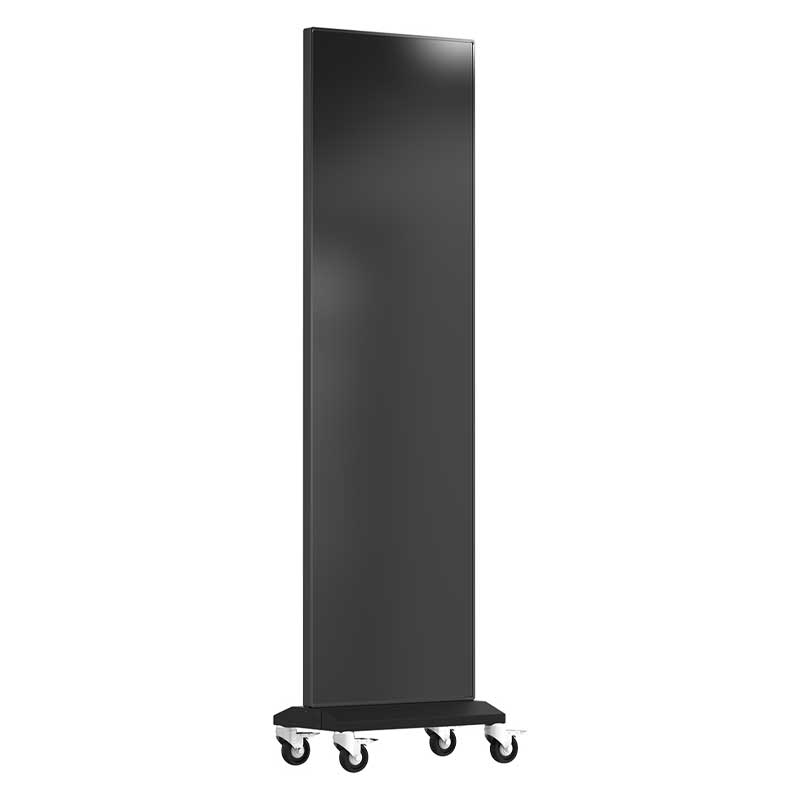

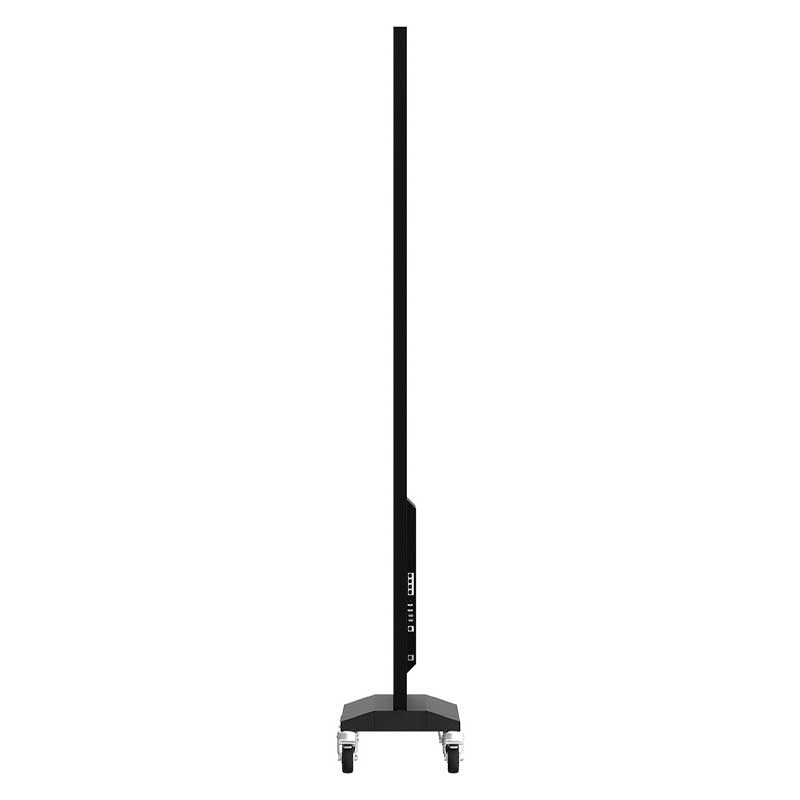

Theatrixx 1.8mm xVision Totem LED Poster Display
Every aspect of the Theatrixx Totem has been carefully engineered to deliver your message with maximum impact, clarity, and quality.

Every aspect of the Theatrixx Totem has been carefully engineered to deliver your message with maximum impact, clarity, and quality. The Totem is a fully standalone digital signage display that can be used as a free-standing unit (with optional locking casters) or permanently installed on a wall or suspended from the ceiling in any orientation. Its direct-view LED panel ensures excellent readability even in bright environments, while a durable plexiglass cover protects the screen against long-term wear and damage.

Each Totem connects easily to Wi-Fi, allowing new content to be uploaded in just a few clicks. A user-friendly PC application makes it simple to manage a fleet of Totems across a local network, with content creation as easy as building a PowerPoint presentation. The software also offers detailed playback logs, exportable to Excel, and allows control via iOS or Android devices; for larger deployments, an optional subscription-based cloud platform enables remote management from anywhere in the world.

Additional information

Packaging RGB SMD 3-in1 LED
Pixel Pitch 1.8 mm
Cabinet resolution 320 x 1080 px
Cabinet dimensions 596 x 1964 mm
Cabinet weight 36 kg
Cabinet thickness 39 mm (excl. control box and base)
Module resolution 160 x 120 px
Module dimensions 288 x 216 mm
Installation Wall mount, floor stand
Cooling Passive
Brightness >800 nits
Lifespan 50,000 hours
Color Temp. 6,500K
Horizontal Viewing Angle 160°
Vertical Viewing Angle 160°
Driving Mode TBC
Grayscale depth TBC
Refresh Rate Up to 4,000 Hz
Video Frame Rate 60 Hz
Control System Novastar T6
Protection Rating IP40
Operating Temp. -10°C @ 50°C
Relative Humidity 10-90% RH
Max. Power Consumption 600W/unit
Average Power Consumption 210W/unit
Input Voltage 100-240V, 50-60Hz auto-ranging
