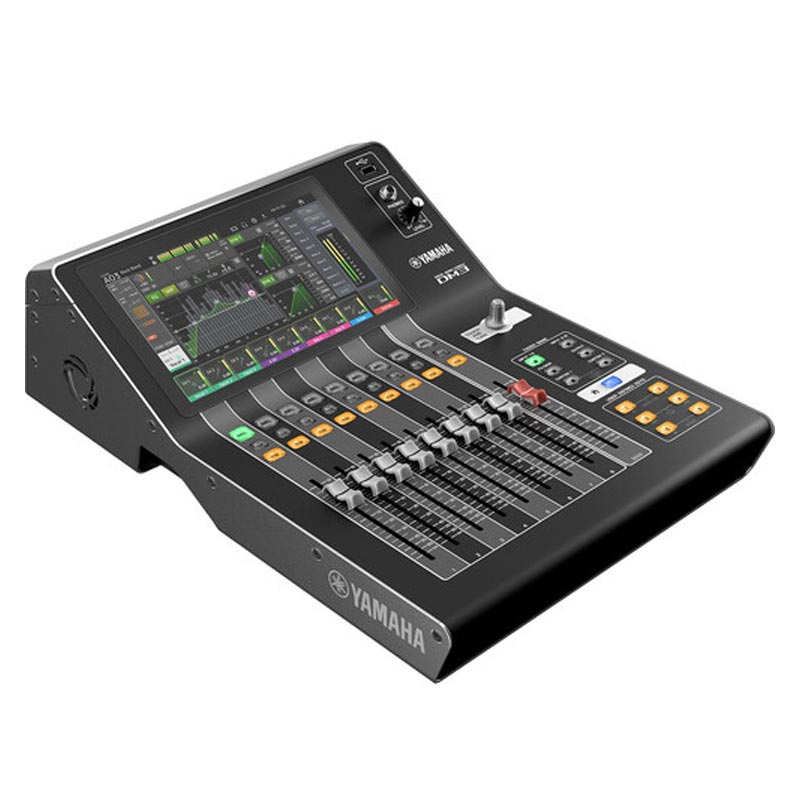

Boasting a sleek and intuitive interface, the Yamaha DM3-D 22-Channel Digital Audio Mixer combines advanced digital processing with ergonomic design, ensuring effortless operation even in the most demanding live sound environments. With 22 input channels featuring Yamaha’s renowned D-PRE preamps, each signal is captured with pristine clarity and dynamics.
Equipped with powerful onboard effects including reverb, delay, and compression, the DM3-D allows for versatile sound shaping and enhancement. Its flexible routing options and extensive connectivity, including USB and Ethernet ports, facilitate seamless integration with recording software and networked audio systems. Built-in touchscreen control provides instant access to all functions, enabling quick adjustments and fine-tuning on the fly.
Additional information
| Type | Digital Mixer |
|---|---|
| Channels | 22 |
| Inputs - Mic Preamps | 12 x XLR, 4 x XLR-1/4" combo |
| Phantom Power | 16 Channels |
| Outputs - Main | 8 x XLR |
| Busses/Groups | Internal (1 x stereo, 6 x mix, 2 x FX, 2 x matrix) |
| Data I/O | 2 x Locking Ethernet (Dante), 1 x RJ-45 (LAN) |
| Headphones | 1 x 1/4" |
| USB | 1 x Type A, 1 x Type B |
| Computer Connectivity | USB (18 x 18) |
| Faders | 9 x 100mm Motorized Faders |
| A/D Resolution | Up to 96kHz |
| DAW Control | Yes |
| Screen | 9" touchscreen |
| Storage | USB Slot |
| Power Source | 24V DC, 2.5A Power Supply |
| Height | 5.5" |
| Depth | 17.9" |
| Width | 12.6" |
| Weight | 14.33 lbs. |
