Shure AD4Q Four-Channel Digital Wireless Receiver – Buy
Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.

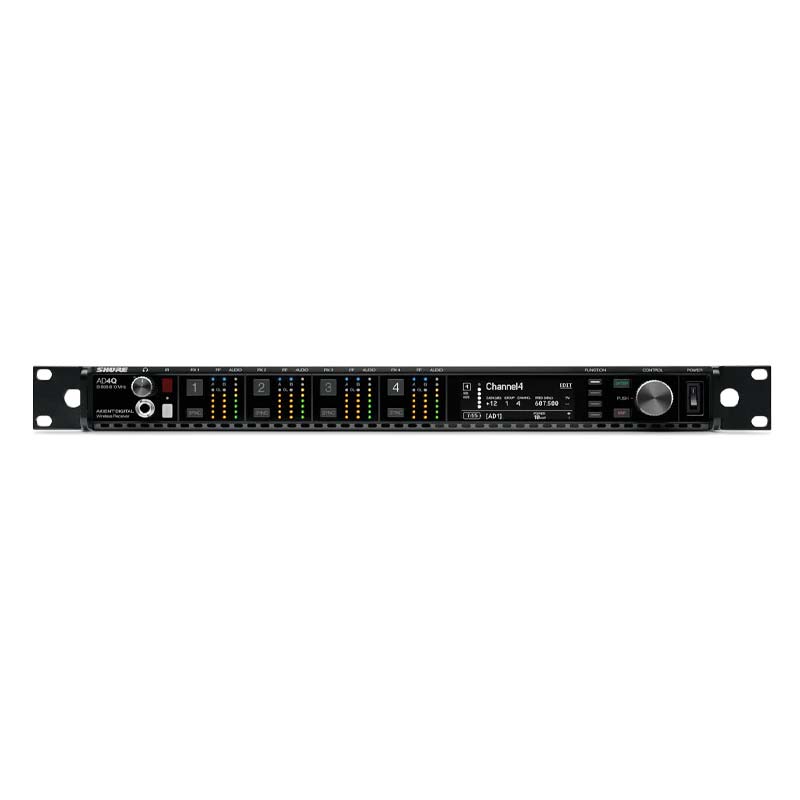

Shure AD4Q Four-Channel Digital Wireless Receiver
- Works with Axient® Digital Wireless Systems
- Features Quadversity™ mode for extended antenna coverage, switchable XLR and AES3 outputs, and all capabilities of the AD4D Two-Channel Digital Receiver
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
- Quadversity mode for extended antenna coverage and improved RF signal-to-noise
- Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- Switchable XLR and AES3 outputs
- Channel Quality meter displays RF signal-to-noise
- Locking AC connectors
- DC module version available to support redundant power
Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.
Additional information
| Configuration | 4-channel Receiver |
|---|---|
| Analog/Digital | Digital |
| Receiver Type | Rackmount |
| Simultaneous Channels | 1 |
| Receiver Frequency Range | 470-636 MHz |
| Range | 330 ft (without Quadversity enabled) |
| Compatibility | Axient Digital |
| Antenna Type | Detachable, 4 x BNC |
| Front Panel Display | Yes |
| Displays | High Res TFT LCD display |
| Frequency Response | 20Hz-20kHz |
| Dynamic Range | 120dB (A weighted, XLR), 130dB (A weighted, Dante) |
| Outputs | 2 x XLR (analog), 2 x XLR (analog/AES3), 4 x 1/4", 1 x 1/4" (headphones) |
| Data I/O | 2 x Ethernet (Dante), 2 x Ethernet (control 1/2 POE) |
| Word Clock | In/Out (thru/75 ohm termination) |
| Rack Spaces | 1U |
| Height | 1.73" |
| Width | 19" |
